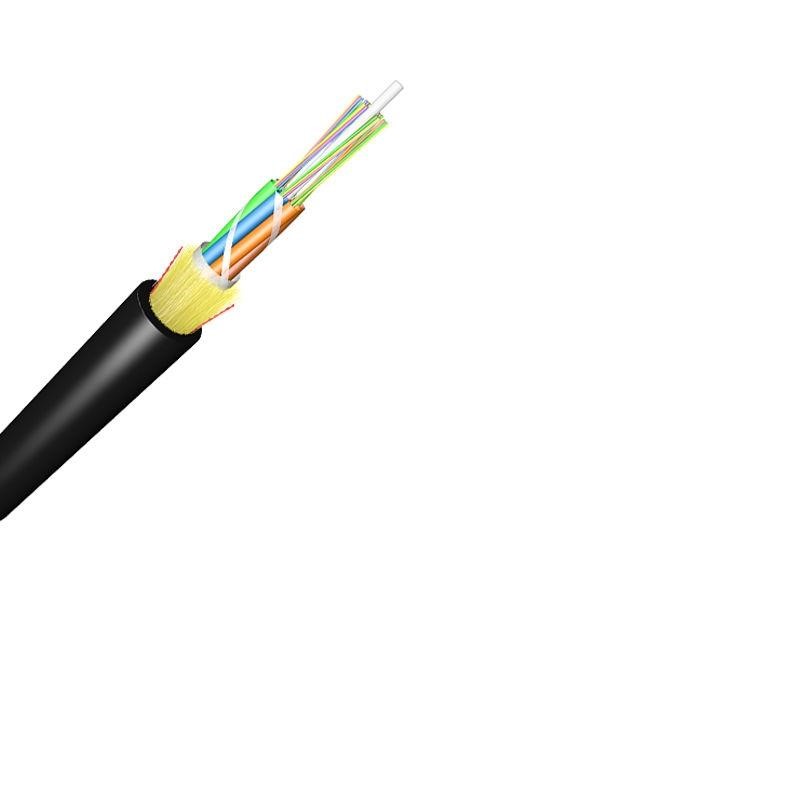

ADSS 6F 100M SPAN SM G652D Single Jacket

All-dielectric self-supporting ADSS cable, 100m max span.
Single-mode G.652.D fiber, low attenuation (≤0.22dB/km @1550nm).
Lightweight, small diameter, high tensile strength.
-40°C to +70°C operating temp, UV/moisture resistant.
Complies with ITU-T, IEC, ISO9001 standards.
Ideal for power grid, telecom, rural connectivity.

Inquire Download

Product Description
Specification
Product Advantage

Product Description

1. Product Overview

All-Dielectric Self-Supporting (ADSS) cable is a type of optical fiber cable that can support itself between structures without relying on conductive metal components. It is designed based on span requirements, voltage levels, and tensile force (MAT) to meet various application scenarios.

Specification

2. Key Parameters

2.1 Basic Information

• Type: Single Jacket ADSS Cable

• Fiber Mode: Single-Mode (SM)

• Max Span: 100m

• Max Applied Voltage: 110kv

• Weather Conditions: 25m/s wind speed + 0mm Ice Load

• Length per Spool: 3km or 4km (with a tolerance of more than 2%)

• Packing: Wooden Spool (Φ1100*750mm)

• Minimum Order Quantity (MOQ): 100km

• Delivery Time: 5-25 Days

• Port of Loading: NINGBO CHINA

• Payment Term: 30% TT as deposit, 70% Balance before shipping

2.2 Optical Fiber Specifications

2.2.1 Fiber Types Available

• G.652.D

• G.655

• 50/125μm Multimode

• 62.5/125μm Multimode

2.2.2 Attenuation

Wavelength	Fiber Type	Attenuation Limit
850nm	50/125μm Multimode	≤ 3.0 dB/km
850nm	62.5/125μm Multimode	≤ 3.0 dB/km
1300nm	50/125μm Multimode	≤ 1.0 dB/km
1300nm	62.5/125μm Multimode	≤ 1.0 dB/km
1310nm	G.652.D	≤ 0.36 dB/km
1310nm	G.655	≤ 0.40 dB/km
1550nm	G.652.D	≤ 0.22 dB/km
1550nm	G.655	≤ 0.23 dB/km
1285-1330nm	All fibers	≤ 0.37 dB/km
1383nm	G.652.D (Normal & Best)	≤ 0.30 dB/km
1383nm	G.657.A1 & G.657.A2	≤ 0.31 dB/km
1490nm	G.652.D (Best)	≤ 0.23 dB/km
1490nm	G.657.A1 & G.657.A2	≤ 0.23 dB/km
1490nm	G.652.D (Normal)	≤ 0.24 dB/km
1525-1575nm	G.652.D (Normal)	≤ 0.22 dB/km
1525-1575nm	G.652.D (Best)	≤ 0.21 dB/km
1525-1575nm	G.657.A1 & G.657.A2	≤ 0.21 dB/km
1625nm	G.652.D (Normal)	≤ 0.25 dB/km
1625nm	G.652.D (Best)	≤ 0.24 dB/km
1625nm	G.657.A1 & G.657.A2	≤ 0.22 dB/km

2.2.3 Bandwidth

Wavelength	Fiber Type	Bandwidth Limit
850nm	50/125μm Multimode	≥ 500 MHz·km
850nm	62.5/125μm Multimode	≥ 200 MHz·km
1300nm	50/125μm Multimode	≥ 1000 MHz·km
1300nm	62.5/125μm Multimode	≥ 600 MHz·km

2.2.4 Polarization Mode Dispersion (PMD)

Parameter	Fiber Type	Limit
Individual Fiber	G.652.D	≤ 0.20 ps/√km
Individual Fiber	G.655	≤ 0.20 ps/√km
Design Link Value (M=20, Q=0.01%)	G.652.D	≤ 0.10 ps/√km
Design Link Value (M=20, Q=0.01%)	G.655	≤ 0.10 ps/√km
PMD Maximum Individual Fiber	All fiber types	≤ 0.1 ps/√km
PMD Link Design Value	All fiber types	≤ 0.06 ps/√km

2.2.5 Mode Field Diameter (MFD)

Wavelength	Fiber Type	MFD
1310nm	G.652.D (Normal)	8.6 ± 0.4 µm
1310nm	G.652.D (Best)	9.0 ± 0.4 µm
1310nm	G.657.A1	9.0 ± 0.3 µm
1310nm	G.657.A2	8.6 ± 0.4 µm
1550nm	G.652.D (Normal)	9.8 ± 0.5 µm
1550nm	G.652.D (Best)	10.2 ± 0.4 µm
1550nm	G.657.A1	10.2 ± 0.4 µm
1550nm	G.657.A2	9.6 ± 0.5 µm

2.2.6 Zero Dispersion Wavelength & Dispersion Coefficient

• Zero Dispersion Wavelength: 1300-1324 nm for all variants

• Dispersion Coefficient (1285-1339 nm): G.652.D, G.657.A1 & A2 ≤ 3.4 ps/(nm·km)

2.2.7 Point Discontinuity

• At 1310 nm & 1550 nm: ≤ 0.05 dB for all fibers

2.3 Physical Dimensions

Parameter	Specification
Cladding Diameter - G.652.D (Normal)	125 ± 0.7 µm
Cladding Diameter - G.652.D (Best), G.657.A1, G.657.A2	125 ± 0.5 µm
Core/Cladding Concentricity Error - G.652.D (Normal)	≤ 0.5 µm
Core/Cladding Concentricity Error - G.652.D (Best), G.657.A1, G.657.A2	≤ 0.4 µm
Cladding Non-circularity - G.652.D (Normal)	≤ 1.0%
Cladding Non-circularity - G.652.D (Best), G.657.A1, G.657.A2	≤ 0.7%
Coating Diameter - G.652.D (Normal & Best)	245 ± 5 µm
Coating Diameter - G.657.A1 & G.657.A2	242 ± 5 µm
Coating/Cladding Concentricity Error - G.652.D (Normal & Best)	≤ 12 µm
Coating/Cladding Concentricity Error - G.657.A1 & G.657.A2	≤ 8 µm
Loose Tube Outer Diameter	1.8, 2.0, 2.5 mm (Adjustable: 1.5
Cable Outer Diameter - 6 fibers	10.7±0.5 mm (Typical); 9.5 mm (Alternative); Adjustable 8.0
Cable Outer Diameter - 12 fibers	9.5mm
Cable Outer Diameter - 24 fibers	12.2mm
Cable Outer Diameter - 48 fibers	13.9mm
Cable Outer Diameter - 72 fibers	17.1mm
Cable Outer Diameter - 96 fibers	20.2mm
Cable Weight	85±5kg (Typical); 75kg/km (12-core); 95kg/km (24-core and larger configurations)

2.4 Structural Components

• Fiber Optic: UV fiber G.652.D

• Tube Filling Compound: Water Blocking & Moisture Proof Thyrotrophic gel

• Loose Tube: 1.8-2.0 mm PBT

• Filler FRP: 1.8 mm LDPE / PP

• Center Strength Member: 1.8 mm GFRP (Material: Glass Fiber Reinforced Plastic Rod; Diameter options: 2.0, 2.5, 2.8, 3.7 mm; Adjustable: 1.8|2.3, 1.8|2.3, 2.5, 2.8, 3.7, 2.6 mm; PE Coated: Optional)

• Water Blocking Tape: 0.28mm thickness

• Binder: 2 wires Polyester Yarns

• Ripcords: 2 wires

• Dielectric Strength Members: Aramid Yarns KEVLAR K49-3000D

• Inner Jacket: 0.9-1.0mm thickness HDPE / MDPE

• Outer Jacket: 1.6-2.0mm thickness HDPE / MDPE (Thickness standard: 1.8mm; 1.5-2.0mm for customization)

• Peripheral Strength Member: Aramid Yarn

2.5 Fiber Count & Loose Tube Configuration

2.5.1 Fiber Count Options

6, 12, 24, 48, 72, 96, 144, 288 fibers; OEM options: 12, 24, 48, 96, 120, 144 cores

2.5.2 Loose Tube Configuration

• 6 fibers: 1x6, 2x6, 4x6

• 8 fibers: 6x8

• 12 fibers: 4x12, 6x12, 8x12, 12x12; OEM design: 3+2+1 (for 12-core)

• 24 fibers: 24x12; OEM design: 1+4+1 (for 24-core, 48-core, and other configurations)

2.6 Temperature Range

• Operation: -40°C to +70°C

• Installation: -20°C to +60°C

• Transport & Storage: -40°C to +70°C

• Standard Range (Alternative): -20~+65℃

2.7 Mechanical Characteristics

Parameter	Requirement
Fiber Strain	≥ 1%
Fiber Load	≥ 9 N (Newtons)
Stress	≥ 100 kpsi (kilo pounds per square inch)
Dynamic Stress Corrosion Susceptibility Factor (Unaged & Aged 30 days @ 85°C, 85% R.H.)	≥ 20
Coating Strip Force (Peak Value)	1.3 - 8.9 N
Fiber Curl	≥ 4 m
Rated Tensile Strength (RTS)	Calculated based on bearing section strength (mainly spinning fiber)
Ultimate Tensile Strength (UTS)	>60% RTS
Max Allowable Working Tension (MAT)	40% RTS; Fiber strain ≤ 0.05% (laminated), ≤ 0.1% (central pipe) without additional attenuation
Every Day Strength (EDS)	(16~25) % RTS; No fiber strain or additional attenuation
Max Installation Tension	2400 N (for all core configurations)
Min Bending Radius - Without Tension	10.0 x Cable Diameter
Min Bending Radius - Under Maximum Tension	20.0 x Cable Diameter

2.8 Environmental Characteristics

Test Condition	Attenuation Limit (1310 nm)	Attenuation Limit (1550 nm)
Dry Heat Aging (30 days @ 85°C)	≤0.05 dB/km	≤0.05 dB/km
Accelerated Aging (30 days @ 85°C, 85% Relative Humidity)	≤0.05 dB/km	≤0.05 dB/km
Temperature Cycling	≤0.05 dB/km	≤0.05 dB/km
Water Soak (30 days @ 23°C)	≤0.05 dB/km	≤0.05 dB/km

3. Standards Compliance

• ITU-T Rec. G.657A

• ISO9001

• IEC 60794

• ICEA-596

• GR-409

• YD/T 1997-2009

• EIA/TIA 598B (for fiber color and binder color code)

4. Transmission Wavelength Bands

Band	Wavelength Range	Frequency Range	Application
O Band	1260-1360 nm	237.9-220.4 THz	Typically used in multimode optical fiber systems
E Band	1360-1460 nm	-	Less commonly used due to higher attenuation
S Band	1460-1530 nm	205.3-195.9 THz	Frequently used in Passive Optical Networks (PON)
C Band	1530-1565 nm	195.9-191.6 THz	Most widely used for long-haul fiber-optic transmission (minimum attenuation)
L Band	1565-1625 nm	191.6-184.5 THz	Second lowest attenuation range, used for extended reach and high-capacity networks
U Band	1625-1675 nm	184.5-179.0 THz	Primarily used for network monitoring

5. Bending Loss

5.1 At 1550 nm

• 10 turns of 15mm radius: ≤0.25 dB

• 100 turns of 25mm radius: ≤0.03 dB

• 1 turn of 10mm radius: ≤0.75 dB

• 1 turn of 7.5mm radius: ≤0.2 dB

• 100 turns of 30mm radius: ≤0.05 dB

5.2 At 1625 nm

• 10 turns of 15mm radius: ≤1.0 dB

• 1 turn of 10mm radius: ≤1.5 dB

• 1 turn of 7.5mm radius: ≤0.5 dB

6. Test Requirements

6.1 Mechanical & Environmental Tests

Test Item	Test Method	Acceptance Requirements
Tensile Strength (IEC 794-1-E1)	Apply 5000 N load over 50m cable length	Loss change ≤0.1 dB at 1550 nm; No fiber break or sheath damage
Crush Test (IEC 60794-1-E3)	Apply 3000 N load over 100 mm of cable for ≥1 minute	Loss change ≤0.1 dB at 1550 nm; No fiber break or sheath damage
Impact Test (IEC 60794-1-E4)	5 impact points, 5 times per point; Impact energy: 4.5 Nm; Hammerhead radius: 12.5 mm; Impact rate: 2 seconds per cycle	Loss change ≤0.1 dB at 1550 nm; No fiber break or sheath damage
Repeated Bending (IEC 60794-1-E6)	Bend with 20x outer diameter (OD); 250 N load; Flexing rate: 3 seconds per cycle; 30 cycles	Loss change ≤0.1 dB at 1550 nm; No fiber break or sheath damage
Torsion (IEC 60794-1-E7)	1m length; 150 N load; Twist rate: 1 minute per cycle; Twist angle: ±90°; 10 cycles	Loss change ≤0.1 dB at 1550 nm; No fiber break or sheath damage
Water Penetration (IEC 60794-1-F5B)	Submerge 3m sample in 1m water for 24 hours	No water leakage from opposite end
Temperature Cycling (IEC 60794-1-F1)	Temperature steps: +20°C → -20°C → +20°C → +40°C; 24 hours per step; 2 cycles	Loss change ≤0.1 dB at 1550 nm; No fiber break or sheath damage
Compound Flow (IEC 60794-1-E14)	30cm sample; 70°C ± 2°C; 24 hours	No compound flow
Sheath High Voltage Test	Online test with 9 kV voltage (dependent on sheath thickness)	No sheath breakdown

7. Cable Marking & Fiber Colors

7.1 Cable Marking

• Marking Content: Fiber cable name, N*cores, G.652D, Manufacture year, Length (XXXXm)

• Marking Interval: Every 1 meter

• Marking Color: White

• Special Note: Occasional unclear length marking is permitted if neighboring markings are clear; Both cable ends are sealed with heat shrinkable end caps to prevent water ingress; Custom marking is available.

7.2 Fiber Color and Binder Color Code (per EIA/TIA 598B)

1. Blue

2. Orange

3. Brown

4. Gray

5. White

6. Red

7. Black

8. Yellow

9. Violet

10. Aqua

11. Pink

12. Green

8. Features and Applications

8.1 Features

• High tensile strength

• All dielectric structure and semi-dry core design

• Small diameter and light weight

• Self-supporting aerial installation

8.2 Applications

• Short Span Aerial Installations (e.g., roadside power poles)

• Near High-Voltage Power Lines (safe non-metallic design)

• Telecommunications (long-distance networks, up to 100 km circuits without repeaters)

• Utility Networks (power grid communication)

• Rural Connectivity (broadband in remote areas)

• Military Use (rapid deployment in field communications)

9. Customization Options

• Fiber count, structure, cable diameter, and weight can be customized according to customer requirements.

• Span needs to be recalculated based on specific climate conditions of the installation area.

• OEM structure design is available (e.g., core number, strength member material, sheath thickness, etc.).

Product Advantage

1

All-dielectric design ensures safety near high-voltage lines.
2

Exceptional tensile strength enables self-supporting 100m max span.
3

Low attenuation (≤0.22dB/km @1550nm) for reliable long-distance transmission.
4

Wide -40°C to +70°C operating range adapts to harsh environments.
5

Lightweight & small diameter reduces tower load and installation effort.
6

Complies with global standards (ITU-T, IEC) for consistent quality.
