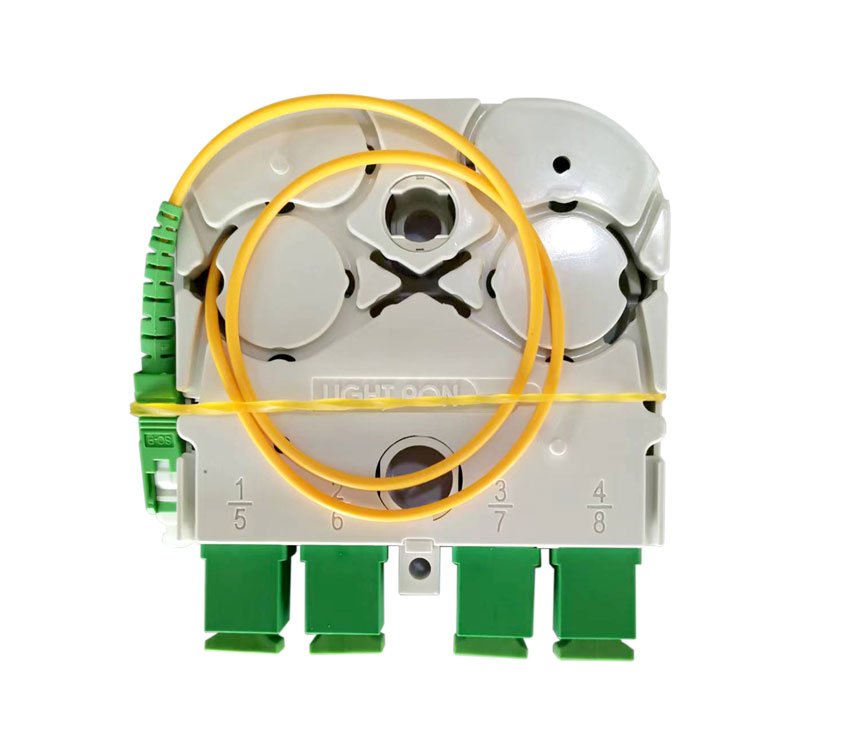

CT PLC Splitter

Core Function: Passive optical signal splitting for fiber optic systems.
Types Available: 1x4 and 1x8 configurations.
Fiber Compatibility: Works with G652D fiber.
Key Components: Includes plastic plug-in box (877224.5mm) and 4/8 SC/APC fiber adapters.
Performance Highlights: Low insertion loss, low PDL (≤0.2dB), good uniformity (≤0.8dB), high directivity/return loss (≥55dB).
Typical Applications: FTTH/FTTC/FTTB, PON, CATV networks, fiber optic equipment/systems.

Inquire Download

Product Description

1. Material List

No.	Material Name	Quantity
1	PLC Splitter	-
2	Plastic Plug-in Box (Dimensions: 877224.5mm)	1
3	SC/APC Fiber Adapter	4/8

2. Performance Requirements (Fiber Type: G652D)

Splitter Type	Performance Parameters
1x4	Insertion Loss (IL): ≤7.7dB (With Connector); ≤7.5dB (Without Connector)<br>Polarization Dependent Loss (PDL): ≤0.2dB<br>Uniformity: ≤0.8dB<br>Directivity: ≥55dB<br>Return Loss (RL): ≥55dB
1x8	Insertion Loss (IL): ≤10.7dB (With Connector); ≤10.5dB (Without Connector)<br>Polarization Dependent Loss (PDL): ≤0.2dB<br>Uniformity: ≤0.8dB

3. Applications

1. FTTH (Fiber to the Home), FTTC (Fiber to the Curb), FTTB (Fiber to the Building)

2. Passive Optical Networks (PON)

3. CATV networks and data communications systems

4. Fiber optic equipment and related systems integration

1

Low insertion loss (≤7.7dB with connector, ≤10.7dB for 1x8 type) ensures efficient signal transmission.
2

Excellent optical performance: Low PDL (≤0.2dB) and good uniformity (≤0.8dB) for stable signal distribution.
3

High directivity (≥55dB) and return loss (≥55dB) minimize signal interference and reflection.
4

Compatible with G652D fiber, adapting to mainstream fiber optic network requirements.
5

Integrated with SC/APC adapters (4/8 pcs) and a compact plastic box (877224.5mm) for easy installation.
6

Versatile applicability across FTTH/FTTC/FTTB, PON, CATV and fiber optic equipment systems.
