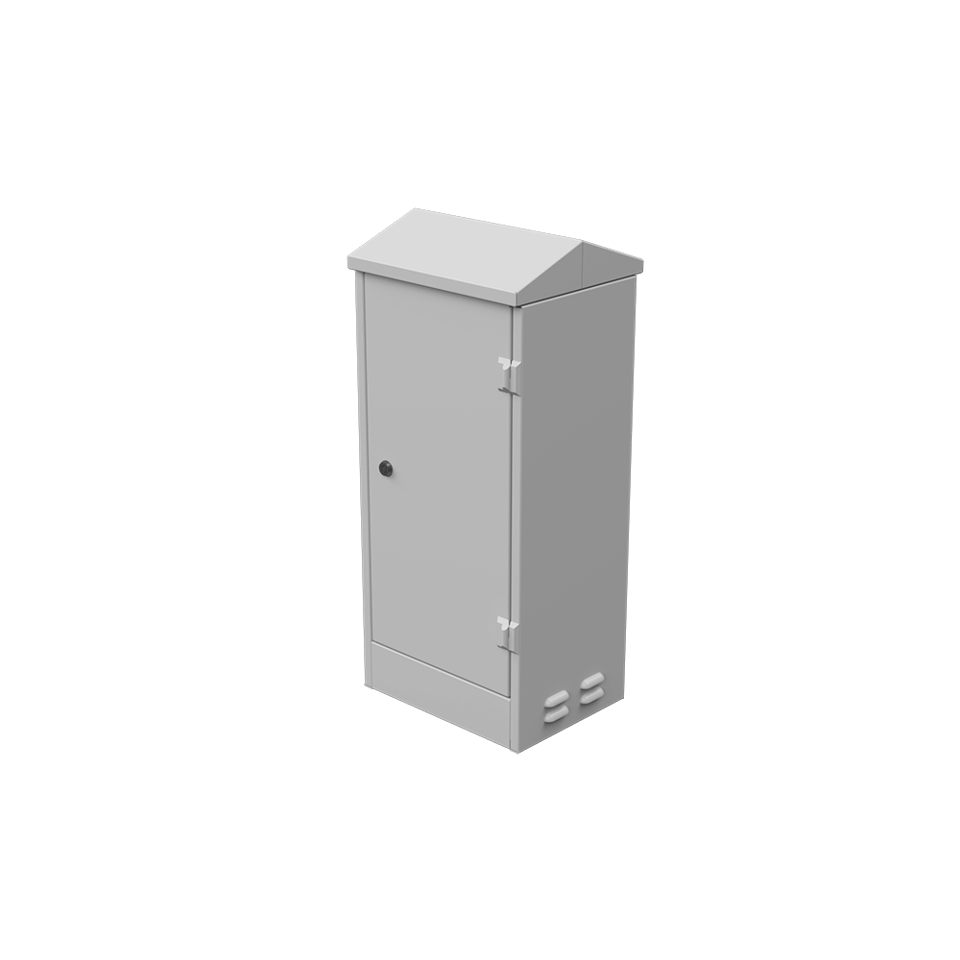

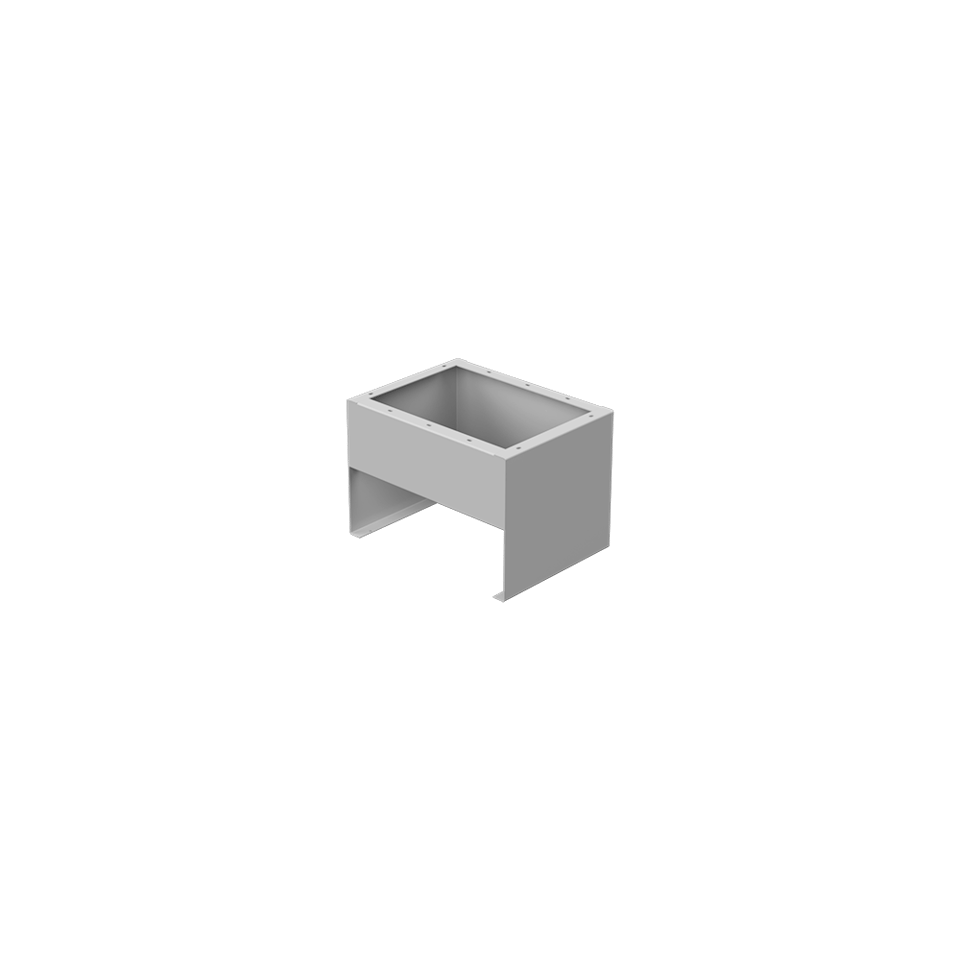

Outdoor Fiber Optic Street Cabinet 400mm

3.3 Environmental Performance

• Operating Temperature Range: -40°C to +65°C (compliant with Telecordia GR-63-CORE Class 4 for outdoor outside plant equipment)

• Storage Temperature Range: -40°C to +85°C

• Relative Humidity: 5% to 100% (non-condensing)

• Ingress Protection: Minimum IP55 rating (per IEC 60529) to prevent dust ingress and water jet penetration from any direction.

• UV Resistance: External materials shall withstand 1000 hours of xenon arc exposure (per IEC 60068-2-5) without significant degradation (e.g., cracking, discoloration, loss of mechanical strength).

• Corrosion Resistance: Compliant with IEC 60068-2-11 (salt mist testing) for 500 hours, with no visible corrosion on metal components.

4. Electrical and Safety Requirements

• Grounding: The cabinet shall be equipped with a dedicated grounding point (compliant with IEC 60364) to ensure electrical safety and protection against electrostatic discharge (ESD). All metal components shall be electrically bonded to the grounding system.

• ESD Protection: Internal surfaces and mounting hardware shall provide ESD protection in accordance with IEC 61000-4-2 (±8 kV contact discharge, ±15 kV air discharge) to prevent damage to fiber optic components.

• Fire Safety: Cabinet materials shall have a flammability rating of V-0 (per UL 94) or equivalent, minimizing fire propagation risks.

• Low-Voltage Compatibility: If designed to accommodate low-voltage power supplies (e.g., for monitoring equipment), the cabinet shall include separate compartments or cable glands for power and fiber cables, complying with IEC 62208 safety requirements.

5. Fiber Management and Compatibility

5.1 Cable Entry/Exit

• The cabinet shall be equipped with multiple cable entry/exit points (minimum 4) with weatherproof cable glands or grommets, compatible with various cable diameters (e.g., 6 mm to 25 mm). Cable entry points shall be positioned to facilitate organized cable routing and prevent water ingress.

• Entry/exit points shall support both aerial and underground fiber cables, with provisions for strain relief to protect cable terminations from mechanical stress.

5.2 Fiber Compatibility

• Shall support single-mode (SM) and multi-mode (MM) fiber optic cables in accordance with IEC 60793 Series.

• Single-mode fiber compatibility: ITU-T G.652.D, G.657.A1, G.657.A2, G.657.B3

• Multi-mode fiber compatibility: IEC 60793-2-10 OM3, OM4

• Compatible with fiber optic connectors (e.g., SC, LC, FC) and splice trays, with sufficient mounting space for up to [specify maximum number, e.g., 4] splice trays and [specify maximum number, e.g., 8] fiber optic splitters (1x8, 1x16, 1x32 configurations).

5.3 Fiber Protection

• Internal cable management features (e.g., cable guides, tie-down points, slack storage) shall be provided to ensure proper fiber routing and maintain a minimum bend radius of 10 mm for single-mode fibers and 15 mm for multi-mode fibers (during installation) and 7.5 mm for single-mode fibers and 10 mm for multi-mode fibers (in final position) (compliant with IEC 60793-1).

• Splice and connector areas shall be protected from dust, moisture, and physical damage, with optional internal environmental control (e.g., desiccant packs) to maintain dry conditions.

6. Compliance and Testing

6.1 Compliance Verification

• All components and materials of the cabinet shall comply with the requirements of the referenced IEC and Telecordia standards. A compliance certificate shall be provided for each product type, documenting test results and adherence to specifications.

6.2 Test Methods

• Mechanical Testing:

￮ Load-bearing test: Apply 1.5 times the maximum intended load (equipment + cables) to mounting points for 24 hours; verify no permanent deformation.

￮ Impact test: IEC 60068-2-75, 5 J impact energy at critical points (e.g., door, frame); no structural damage or loss of ingress protection.

￮ Vibration test: IEC 60068-2-6, 10 Hz to 500 Hz, 10 g acceleration (peak) for 2 hours per axis; no loosening of components or degradation of performance.

• Environmental Testing:

￮ Temperature cycling: IEC 60068-2-14, -40°C to +65°C, 10 cycles, 1 hour dwell time at each extreme; no condensation or functional issues.

￮ Humidity testing: IEC 60068-2-3, 93% relative humidity, +40°C, 10 days; no corrosion or degradation of materials.

￮ IP rating test: IEC 60529, verify IP55 compliance (dust protection and water jet resistance).

￮ UV exposure test: IEC 60068-2-5, 1000 hours xenon arc exposure; no visible degradation of external surfaces.

• Safety Testing:

￮ Ground continuity test: IEC 60364, verify resistance ≤ 0.1 Ω between grounding point and metal components.

￮ ESD test: IEC 61000-4-2, verify no damage to internal components after contact and air discharge.

7. Marking and Documentation

7.1 Marking

• Each cabinet shall be permanently marked with the following information (excluding customer-specific part numbers or trade names):

￮ Compliance symbols for applicable IEC and Telecordia standards (e.g., "IEC 60529 IP55", "Telecordia GR-63-CORE Compliant")

￮ Environmental rating (e.g., "-40°C to +65°C", "IP55")

￮ Mounting type (e.g., "Pole-Mount/Wall-Mount/Ground-Mount")

￮ Manufacturing date (year and month)

￮ Serial number (unique identifier)

￮ Warning labels (e.g., "No Unauthorized Access", "Fiber Optic Equipment - Handle with Care")

7.2 Documentation

• The following documentation shall be provided with each delivery:

￮ Technical data sheet, including external/internal dimensions, weight, material specifications, environmental ratings, and mounting requirements.

￮ Installation manual, providing step-by-step instructions for mounting the cabinet, cable entry/exit, and equipment installation.

￮ Compliance certificate, verifying adherence to the requirements of this specification and referenced standards.

￮ Maintenance guidelines, including recommended inspection intervals, cleaning procedures, and replacement of consumables (e.g., desiccant packs).

8. Quality Assurance

• The manufacturing process shall comply with ISO 9001 quality management system requirements.

• A quality control plan shall be implemented, covering incoming inspection of raw materials, in-process testing of components, and final inspection of finished cabinets.

• All cabinets shall undergo 100% functional and environmental pre-shipment testing to ensure compliance with specifications.

• A warranty period of at least 5 years shall be provided, covering defects in materials and workmanship under normal operating conditions.
