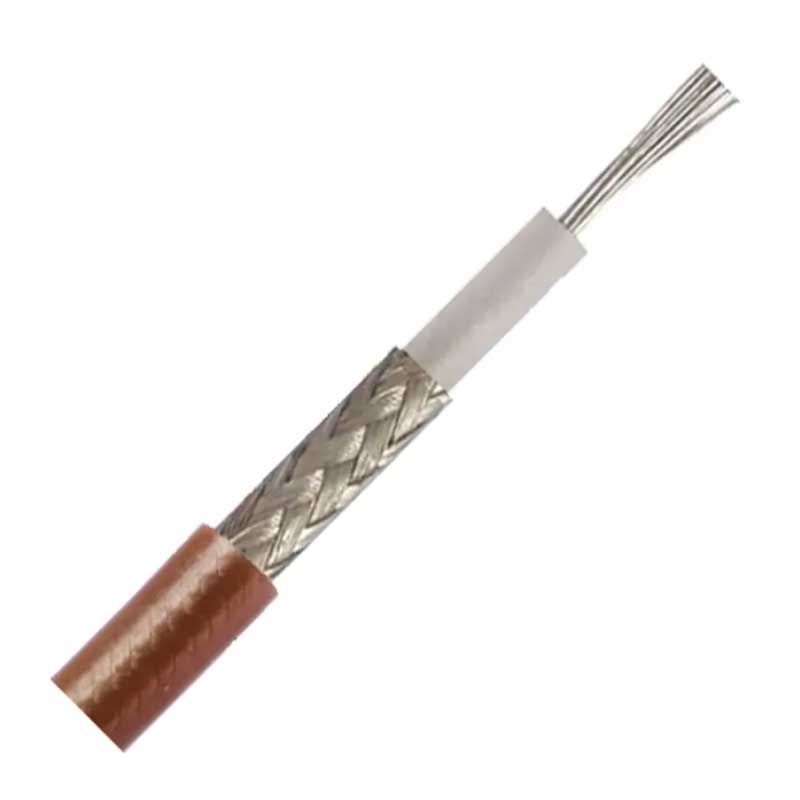

RG178

Inner Conductor	7/0.102±0.01mm Silver Plated Copper Clad Steel
Dielectric	0.86±0.05mm PTFE (White)
Shield 1	16×3×0.10mm Silver Plated Copper; Braiding Density: 96% ± 3%
Jacket	1.80±0.10mm FEP (Natural Brown)

Inquire Download

Product Description

• Category: Coaxial Cable

• Impedance: 50 ± 2 Ω

• Available Lengths: 100m, 305m, 500m, 1000m, 500ft, 1000ft

• Packaging Options: Roll, wooden spool, carton, pallet

• Minimum Order Quantity (MOQ): 10KM

Coaxial Cable Technical Specification

Construction Parameters

Component	Specification
Inner Conductor	7/0.102±0.01mm Silver Plated Copper Clad Steel
Dielectric	0.86±0.05mm PTFE (White)
Shield 1	16×3×0.10mm Silver Plated Copper; Braiding Density: 96% ± 3%
Jacket	1.80±0.10mm FEP (Natural Brown)
Standard	MIL-C-17

Electrical Characteristics

Parameter	Specification
Capacitance	100±5 pF/m
Velocity of Propagation	70%
Maximum Operating Voltage	750 VMS
Maximum Operating Frequency	3000 MHz

Mechanical and Environmental Properties

Parameter	Specification
Cable Bend Radius	10 mm
Operating Temperature Range	-55 ℃ to 200 ℃
Installation Temperature Range	-5 ℃ to 20 ℃

Attenuation (20℃)

1

Exceptional Temperature Adaptability: Operates reliably within a wide temperature range of -55℃ to 200℃ and supports installation between -5℃ to 20℃, making it suitable for diverse harsh environmental conditions.
2

Superior Signal Integrity: Features a 96%±3% dense silver-plated copper braid shield that effectively minimizes electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable signal transmission.
3

High Performance Specifications: Boasts a maximum operating frequency of 3000 MHz and low attenuation (as low as 45.30 dB/100m at 100 MHz), delivering efficient signal propagation for high-frequency applications.
4

Durable and Robust Construction: Utilizes high-quality PTFE dielectric and FEP jacket materials, combined with a silver-plated copper-clad steel inner conductor, enhancing mechanical strength and long-term service life.
5

Flexible Installation: With a small bend radius of only 10 mm, the cable offers excellent flexibility, facilitating easy routing and installation in confined spaces or complex layouts.
6

Widely Certified and Compliant: Meets international standards including UL, ETL, CE, CPR, and RoHS, ensuring compliance with global safety and environmental requirements for versatile application scenarios.
