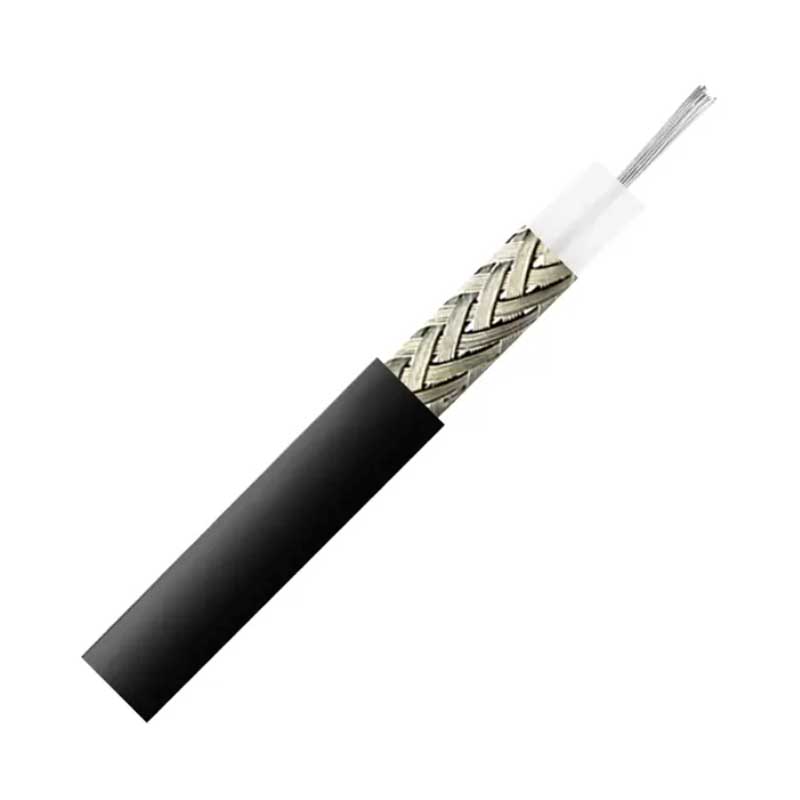

RG223

Inner Conductor	1/0.90 ± 0.01 mm Silver Plated Copper (SPC)
Dielectric	2.95 ± 0.05 mm Solid Polyethylene (SPE)
Shield 1	16 × 7 × 0.12 mm Silver Plated Copper (SPC); Braiding Density: 95% ± 3%
Shield 2	16 × 7 × 0.12 mm Silver Plated Copper (SPC); Braiding Density: 94.2% ± 3%
Jacket	5.30 ± 0.10 mm Black PVC

Inquire Download

Product Description

1. Basic Information

• Model: NO.7101216 RG223

• Category: Coaxial Cable

• Impedance: 50 ± 2 Ω

• Certificates: UL, ETL, CE, CPR, RoHS

• Standard: MIL-C-17

• Length Options: 100m, 305m, 500m, 1000m, 500ft, 1000ft (or customizable per customer's request)

• Packing: Roll, wooden spool, carton, pallet (or customizable per customer's request)

RG223 Coaxial Cable Technical Specification

2. Construction Parameters

Component	Specification
Inner Conductor	1/0.90 ± 0.01 mm Silver Plated Copper (SPC)
Dielectric	2.95 ± 0.05 mm Solid Polyethylene (SPE)
Shield 1	16 × 7 × 0.12 mm Silver Plated Copper (SPC); Braiding Density: 95% ± 3%
Shield 2	16 × 7 × 0.12 mm Silver Plated Copper (SPC); Braiding Density: 94.2% ± 3%
Jacket	5.30 ± 0.10 mm Black PVC

3. Electrical Characteristics

• Capacitance: 101 ± 5 pF/m

• Velocity of Propagation: 66%

• Max Operating Voltage: 1900 VMS

• Max Operating Frequency: 12400 MHz

• Attenuation (at 20℃):

4. Mechanical and Environmental Properties

• Cable Bend Radius: 25 mm

• Operating Temperature Range: -40 ℃ to 80 ℃

• Installation Temperature Range: -5 ℃ to 20 ℃

1

Exceptional Shielding Performance: Features dual silver-plated copper braided shields with 95% and 94.2% braiding density respectively, effectively minimizing electromagnetic interference (EMI) and radio frequency interference (RFI) for stable signal transmission.
2

High-Quality Construction Materials: Utilizes silver-plated copper inner conductor and solid polyethylene (SPE) dielectric, ensuring low signal loss, excellent conductivity, and reliable mechanical stability even in harsh conditions.
3

Broad Operating Frequency & Voltage Range: Supports a maximum operating frequency of 12400 MHz and a maximum operating voltage of 1900 VMS, making it suitable for high-frequency and high-voltage communication applications.
4

Wide Temperature Adaptability: Operates seamlessly within a temperature range of -40 ℃ to 80 ℃ and can be installed between -5 ℃ to 20 ℃, adapting to diverse environmental conditions from extreme cold to moderate heat.
5

Certified Reliability: Complies with international standards (MIL-C-17) and holds UL, ETL, CE, CPR, and RoHS certifications, guaranteeing compliance with global quality and environmental safety requirements.
6

Flexible Customization & Packaging: Offers customizable lengths (100m, 305m, 500m, etc.), markings, and packaging options (roll, wooden spool, carton, pallet) to meet specific customer application needs and logistics requirements.
