Technical Specification for Coaxial Cable
General Information
• Category: Coaxial Cable
• Standard: MIL-C-17
• Impedance: 75 ± 2 Ω
• Certifications: UL, ETL, CE, CPR, RoHS
• Length Options: 100m, 305m, 500m, 1000m, 500ft, 1000ft

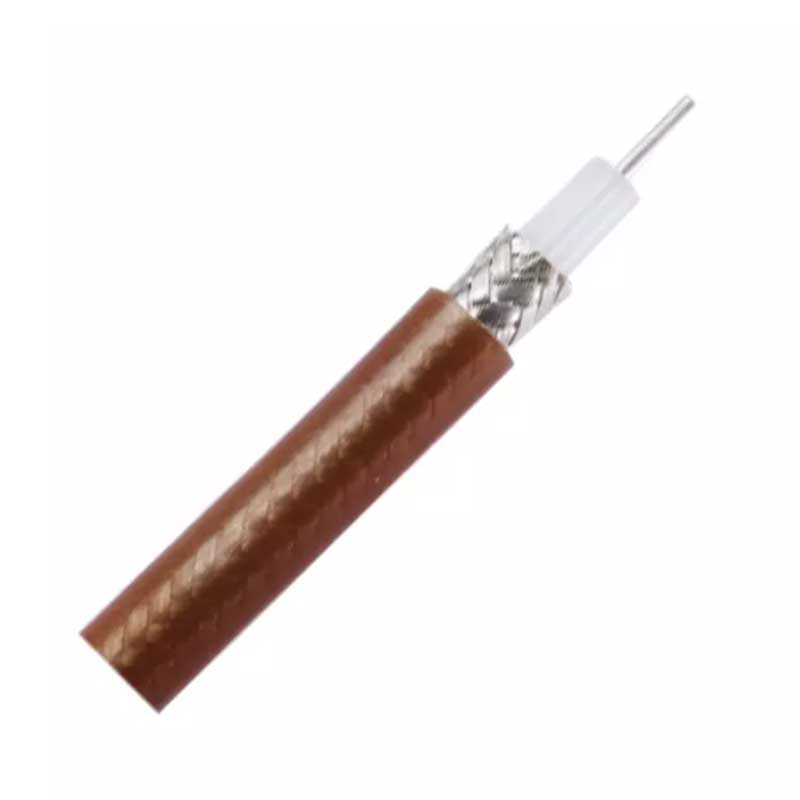

Construction Parameters
Component | Specification |
Inner Conductor | 1/0.64±0.01mm Silver Plated Copper Clad Steel |
Dielectric | 3.71±0.05mm PTFE (White) |
Shield 1 | 16×7×0.12mm Silver Plated Copper; Braiding Density: 90%±3% |
Jacket | 5.13±0.10mm FEP (Natural Brown) |
Electrical Characteristics
Parameter | Specification |
Capacitance | 64±5 pF/m |
Impedance | 75±2 Ω |
Velocity of Propagation | 70% |
Max Operating Voltage | 2300 VMS |
Max Operating Frequency | 3000 MHz |
Mechanical and Environmental Properties
Parameter | Specification |
Cable Bend Radius | 25 mm |
Operating Temperature Range | -55 ℃ to 200 ℃ |
Installation Temperature Range | -5 ℃ to 20 ℃ |
Attenuation (20℃)
Frequency (MHz) | Max Attenuation (dB/100m) |
100 | 10.50 |
400 | 21.70 |
1000 | 35.40 |
3000 | 66.60 |
