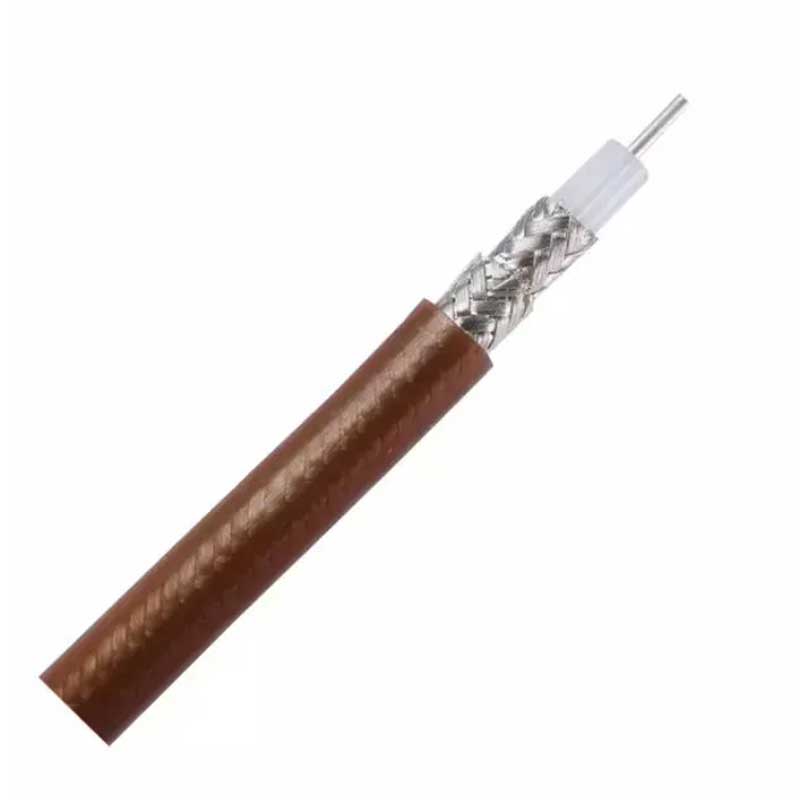

RG304

Technical Specification of Coaxial Cable

1. Model Identification

Corresponding to the product previously referenced as RG304

2. Construction Parameters

• Inner Conductor: 1/1.50 ± 0.01 mm Silver Plated Copper Clad Steel

• Dielectric: 4.70 ± 0.05 mm PTFE (White)

• Shield 1: 24 × 5 × 0.15 mm Silver Plated Copper, Braiding Density: 95% ± 3%

• Shield 2: 24 × 6 × 0.15 mm Silver Plated Copper, Braiding Density: 95% ± 3%

• Jacket: 7.11 ± 0.10 mm FEP (Natural Brown)

• Standard Compliance: MIL-C-17

3. Electrical Characteristics

• Capacitance: 96 ± 5 pF/m

• Impedance: 50 ± 2 Ω

• Velocity of Propagation: 70%

• Maximum Operating Voltage: 3000 VMS

• Maximum Operating Frequency: 12000 MHz

4. Mechanical and Environmental Properties

• Cable Bend Radius: 36 mm

• Operating Temperature Range: -55 ℃ to 200 ℃

• Installation Temperature Range: -5 ℃ to 20 ℃

5. Attenuation (at 20℃)

6. General Specifications

• Certifications: UL, ETL, CE, CPR, RoHS

• Available Lengths: 100m, 305m, 500m, 1000m, 500ft, 1000ft (customizable)

• Packaging Options: Roll, wooden spool, carton, pallet (customizable)

• Minimum Order Quantity: 10KM
