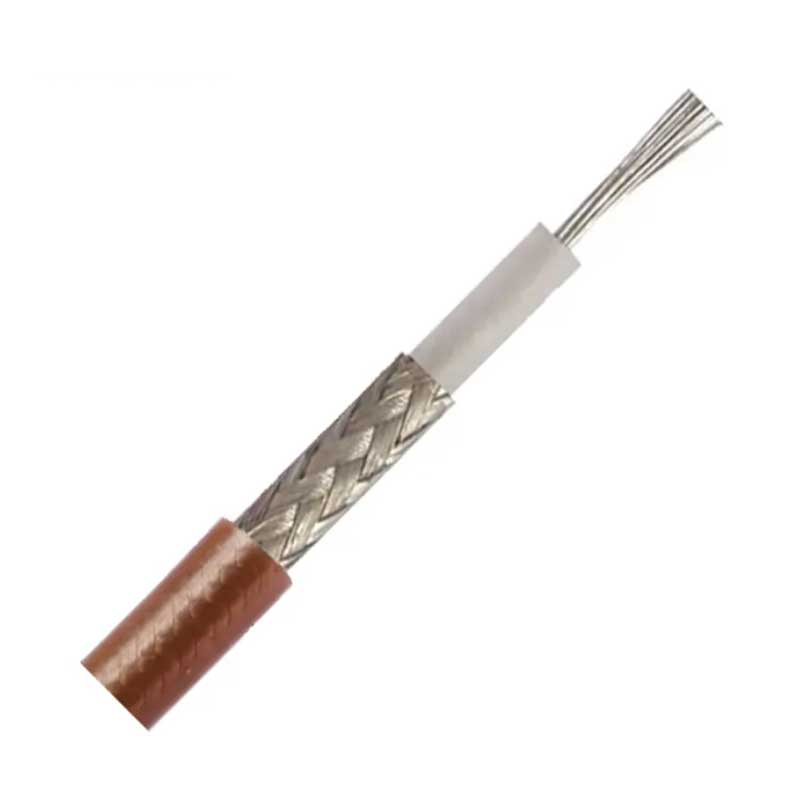

Technical Specification of Coaxial Cable (RG316)
1. Product Category
Coaxial Cable
2. Construction Parameters
Component | Specification |
Inner Conductor | 7/0.17±0.01mm Silver Plated Copper Clad Steel |
Dielectric | 1.52±0.05mm PTFE (White) |
Shield 1 | 16×5×0.10mm Silver Plated Copper; Braiding Density: 95% |
Jacket | 2.50±0.10mm FEP (Natural Brown) |
Standard | MIL-C-17 |
3. Electrical Characteristics
Parameter | Specification |
Capacitance | 100±5 pF/m |
Impedance | 50±2 Ω |
Velocity of Propagation | 70% |
Max Operating Voltage | 1200 VMS |
Max Operating Frequency | 3000 MHz |
4. Mechanical and Environmental Properties
Parameter | Specification |
Cable Bend Radius | 13 mm |
Operating Temperature Range | -55 ℃ to 200 ℃ |
Installation Temperature Range | -5 ℃ to 20 ℃ |
5. Attenuation (20℃)
Frequency (MHz) | Max Attenuation (dB/100m) |
100 | 26.20 |
400 | 53.10 |
1000 | 85.6 |
3000 | 153.20 |
