1. Basic Information

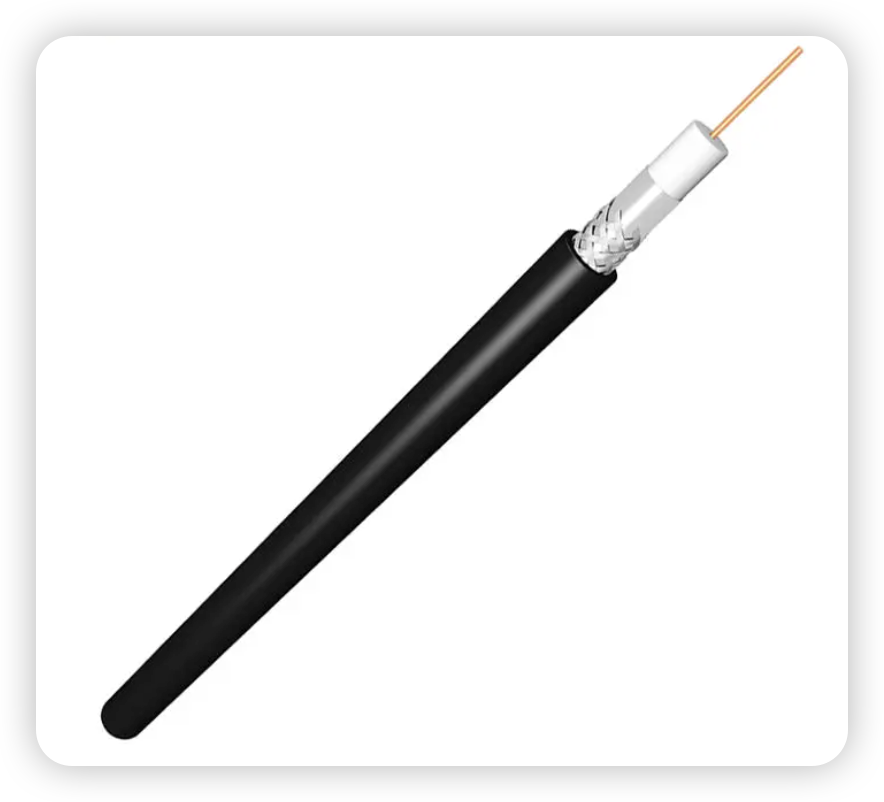

• Model: RG59 S
• Category: Coaxial Cable
• Impedance: 75 ± 3 Ω
• Certifications: UL, ETL, CE, RoHS, CPR, ISO 9001:2015, SABS, EN 50575
• Length Options: 100m, 305m, 500m, 1000m, 500ft, 1000ft
• Packaging: Roll, wooden spool, carton, pallet, pull box, plastic spool (customizable based on inquiry)
2. Construction Parameters
Component | Specification |
Inner Conductor | 0.032"/0.81mm/20 AWG CCS (Copper-Clad Steel) |
Dielectric | 0.144"/3.66mm Foamed PE (Polyethylene) |
Shield 1 | 0.151"/3.84mm Bonded Aluminum PET |
Shield 2 | Aluminum Braid Wire with 95% Coverage |
Jacket | 0.240"±0.006"/6.10±0.15mm Jelly PE |
Jacket Thickness | 0.032"/0.81mm |
Cable Diameter | 0.240"±0.006"/6.10±0.15mm |
3. Application
Designed for use in longer CATV (Cable Television) run lengths.
4. Electrical Characteristics (20℃)
Parameter | Specification |
Inner Conductor Resistance | Max. < 133.9Ω/km / 40.85Ω/1000ft |
Capacitance | 52 ± 3 pF/m / 15.8 ± 1 pF/ft |
Impedance | 75 ± 3 Ω |
Return Loss | > 22 dB (Frequency range: 5 - 1000 MHz) |
Velocity of Propagation | 0.85 |
Sparker Test (VAC) | 4 kV |
5. Mechanical and Environmental Properties
Parameter | Specification |
Cable Bend Radius | 10 times the cable diameter |
Operating Temperature Range | -20℃ to 60℃ / -40℃ to 80℃ |
6. Attenuation (20℃)
Frequency (MHz) | Max Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
5 | 0.86 | 2.82 |
55 | 2.05 | 6.73 |
83 | 2.45 | 8.04 |
187 | 3.60 | 11.81 |
211 | 3.80 | 12.47 |
250 | 4.10 | 13.45 |
300 | 4.45 | 14.60 |
350 | 4.80 | 15.75 |
400 | 5.10 | 16.73 |
450 | 5.40 | 17.72 |
500 | 5.70 | 18.70 |
550 | 5.95 | 19.52 |
600 | 6.20 | 20.34 |
750 | 6.97 | 22.87 |
865 | 7.52 | 24.67 |
1000 | 8.12 | 26.64 |
7. Marking
RG59 S 95% Jelly PE CATV COAXIAL CABLE 7100102 ×××M/FT (length marked according to actual order)
