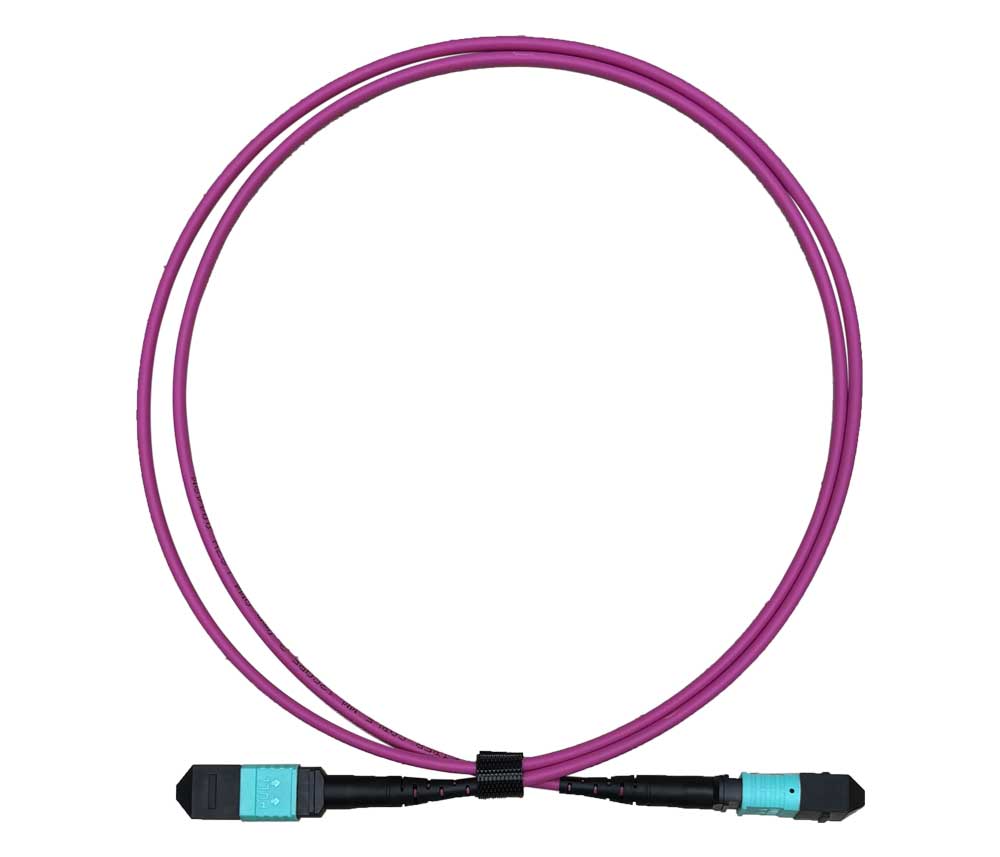

Trunk Cable MPO-MPO OM4

Designed for data center high-density cabling, suitable for MDA/HDA/EDA rapid deployment.
Supports 10GbE to 40GbE/100GbE migration, reducing installation/reconfiguration time and cost.
Fiber options: OM3/OM4 (multimode) and OS2 (single mode), fiber count: 8-144 fibers.
Connector types: MPO/MTP (A/B/C polarity) and LC/SC/FC/ST, low insertion loss (≤0.35dB).
Cable jackets: OFNP/LSZH/PVC, with specific color coding for different fiber modes.
Operating temp: -10°C to +70°C; storage temp: -40°C to +85°C.
Compliant with ROHS, CE, ISO9001, EIATIA, and other industry standards.
Compatible with alcohol-free cleaning tools (one-push/cassette cleaners) for easy maintenance.

Inquire Download

Product Description
Specification
Product Advantage

Product Description

1. Overview

This MPO-MPO OM4 Trunk Cable is specifically designed for high-density cabling systems in data centers. It is well-suited for rapid infrastructure deployment in main distribution areas (MDA), horizontal distribution areas (HDA), and equipment distribution areas (EDA), enabling efficient interconnectivity between cassettes, panels, and ruggedized MPO fanouts. The cable supports seamless migration from 10GbE to 40GbE or 100GbE networks, reducing installation and reconfiguration time and costs.

2. Standards Compliance

• ROHS

• CE (EN 50575 CPR)

• ISO9001

• EIATIA

• Telecordia GR-326-CORE

• IEC61754-7

• TIA 605-4 (FOCIS 5)

• YD/T1272.5

Specification

3. Construction Specifications

3.1 Fiber Parameters

• Fiber Count: 8 - 144 Fibers

• Fiber Mode: Multimode (OM4: 50/125 μm; OM3: 50/125 μm); Single mode (OS2: 9/125 μm)

• Polarity: Type A, Type B, Type C

3.2 Connector Details

• Connector Types: Connector A (MPO Female, Male); Connector B (LC, SC, FC, ST)

• Insertion Loss: ≤ 0.35 dB (both Single mode and Multimode)

• Return Loss: Single mode (UPC Polish: ≥ 50 dB; APC Polish: ≥ 60 dB); Multimode: ≥ 25 dB

3.3 Cable Jacket

• Ratings: Plenum (OFNP), Low Smoke Zero Halogen (LSZH), Riser (PVC)

• Type: Bunch

• Color Codes:

￮ OS2: Yellow (Cable), Green (Connectors)

￮ OM4: Magenta (Cable), Aqua (Connectors)

￮ OM3: Aqua (Cable), Aqua (Connectors)

• Boot Color: 8/12/24 Fibers: Black; 24 Fibers (alternative): Red

3.4 Physical Properties

• Cable Diameter: 3.0 mm

• Trunk Length: 0.5 m, 1 m, 2 m, 3 m, etc. (customizable)

• Minimum Bend Radius: Single mode: 10.0 mm; Multimode: 7.5 mm

• Operating Temperature: -10°C to +70°C

• Storage Temperature: -40°C to +85°C

• Optional Accessory: Pulling eyes (to protect fiber ends during installation)

4. Optical Properties

Parameter	Specification
Attenuation (dB/km)	Single mode: ≤ 0.32 (1310 nm), ≤ 0.18 (1550 nm); Multimode: ≤ 2.3 (850 nm), ≤ 0.6 (1300 nm)
Wavelength (nm)	Single mode: 1310/1550; Multimode: 850/1300
Transmission Distance	OM4: 150 m (40/100G), 400 m (10G); OM3: 100 m (40/100G), 300 m (10G)

5. Fiber Optic Cleaning Tools

5.1 One-Push Cleaner

• Application: For cleaning ferrules (pinned or non-pinned) of MPO connectors.

• Features: Narrow design to access tightly spaced MPO adapters; Alcohol-free cleaning; Cost-effective.

5.2 Fiber Optic Cassette Cleaner

• Material: Non-alcohol superfine fiber.

• Application: Suitable for optical network maintenance, engineering, and equipment cleaning.

• Features: Replaceable cassette tapes (supports 500+ cleaning operations); Low cleaning cost.

Product Advantage

1

High-density cabling solution ideal for data centers, enabling rapid infrastructure deployment across MDA/HDA/EDA zones.
2

Seamless migration from 10GbE to 40GbE/100GbE, reducing network upgrade time and costs.
3

Low insertion loss (≤0.35dB) and excellent optical performance, ensuring reliable signal transmission.
4

Versatile fiber (OM3/OM4/OS2) and connector (MPO/MTP/LC/SC/FC/ST) options with multiple polarity types, meeting diverse application needs.
5

Durable design with appropriate bend radius, wide temperature range (-10°C to +70°C operating), and compliant with global industry standards.
6

Easy maintenance supported by compatible alcohol-free cleaning tools, ensuring long-term operational efficiency.
