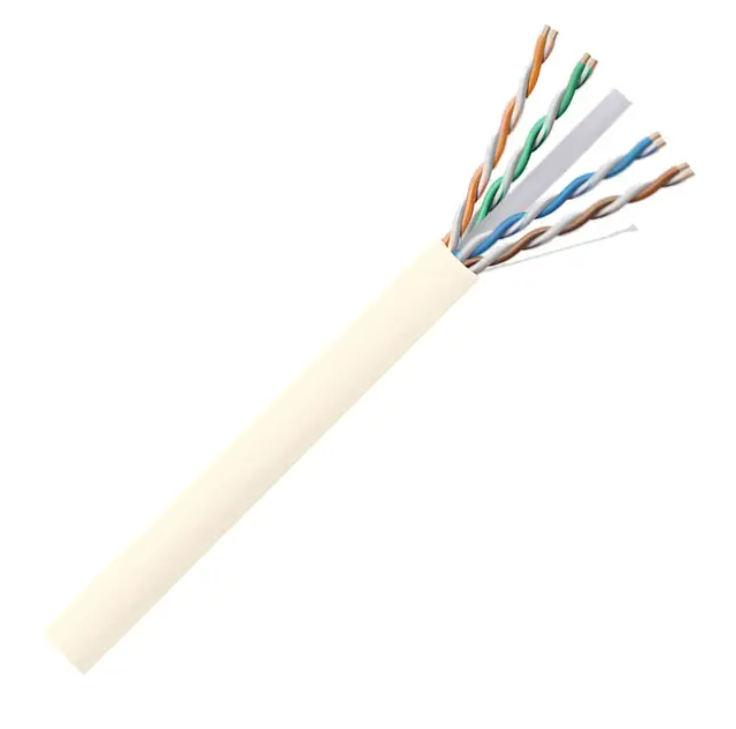

2. Construction and Materials
2.1 Conductor
• Material: Solid Bare Copper
• Size: 23AWG
2.2 Pairs
4 Pairs
2.3 Insulation
• Thickness: 1.00±0.05 mm FEP
• Material: FEP
• Colors: Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
2.4 Rip Cord
Kevlar
2.5 Spline/Cross Separator
FEP or LSZH CROSSWEB
2.6 Outer Jacket
• Material: Plenum PVC
• Wall Thickness: 0.0157" Nom(0.4mm)
• Outer Diameter (OD): 5.60 ± 0.2mm
3. Standards Compliance
UL 444 & CSA C22.2 No.214 Communications Cables
4. Application Support
• 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 100VG-AnyLAN, ATM
• VoIP, ISDN, Token, 100MTPPDM, Analog and Data video, POE Type1,2,3,4
5. Electrical Characteristics
Parameter | Specification |
DC Resistance | ＜ 9.38 Ohms/100m @20 ℃ |
DC Resistance Unbalance | 5% @ 20℃ |
Mutual Capacitance | 5.6 nF/100m |
Characteristic Impedance | 1 - 100 MHz : 100±15 Ohms; 101 - 250 MHz : 100±22 Ohms |
Max Frequency | 250MHz |
Capacitance Unbalance | 330 pF/100m |
NVP (Nominal Velocity of Propagation) | ≥ 65% |
Delay Skew | ≤ 44ns/100m |
Working Voltage | Typically up to 48V |
Rated Voltage (V RMS) | 300V |
6. Transmission Performance (100m, 20±2℃)
Frequency | Attenuation | NEXT
(dB) | ACRF
(dB) | PS.NEXT
(dB) | PS.ACRF
(dB) | RL
(dB) | Delay
(ns/100m) | Skew
(ns/100m) |
MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
1 | 2.0 | 74.3 | 67.8 | 72.3 | 64.8 | 20.0 | 570.0 | 45.0 |
4 | 3.8 | 65.3 | 55.8 | 63.3 | 52.8 | 23.0 | 552.0 |
8 | 5.3 | 60.8 | 49.7 | 58.8 | 46.7 | 24.5 | 546.7 |
10 | 6.0 | 59.3 | 47.8 | 57.3 | 44.8 | 25.0 | 545.4 |
16 | 7.6 | 56.2 | 43.7 | 54.2 | 40.7 | 25.0 | 543.0 |
20 | 8.5 | 54.8 | 41.8 | 52.8 | 38.8 | 25.0 | 542.0 |
25 | 9.5 | 53.3 | 39.8 | 51.3 | 36.8 | 24.3 | 541.2 |
31.25 | 10.7 | 51.9 | 37.9 | 49.9 | 34.9 | 23.6 | 540.4 |
62.5 | 15.4 | 47.4 | 31.9 | 45.4 | 28.9 | 21.5 | 538.6 |
100 | 19.8 | 44.3 | 27.8 | 42.3 | 24.8 | 20.1 | 537.6 |
200 | 29.0 | 39.8 | 21.8 | 37.8 | 18.8 | 18.0 | 536.5 |
250 | 32.8 | 38.3 | 19.8 | 36.3 | 16.8 | 17.3 | 536.3 |
7. Physical Properties
Parameter | Specification |
Pulling Tension (Max) | 25 lbs(110N) |
Bend Radius (Min) | 4 Times the cable diameter |
Operating Temperature | -20 to 75 ℃ （ -4 to 167 ℉） |
