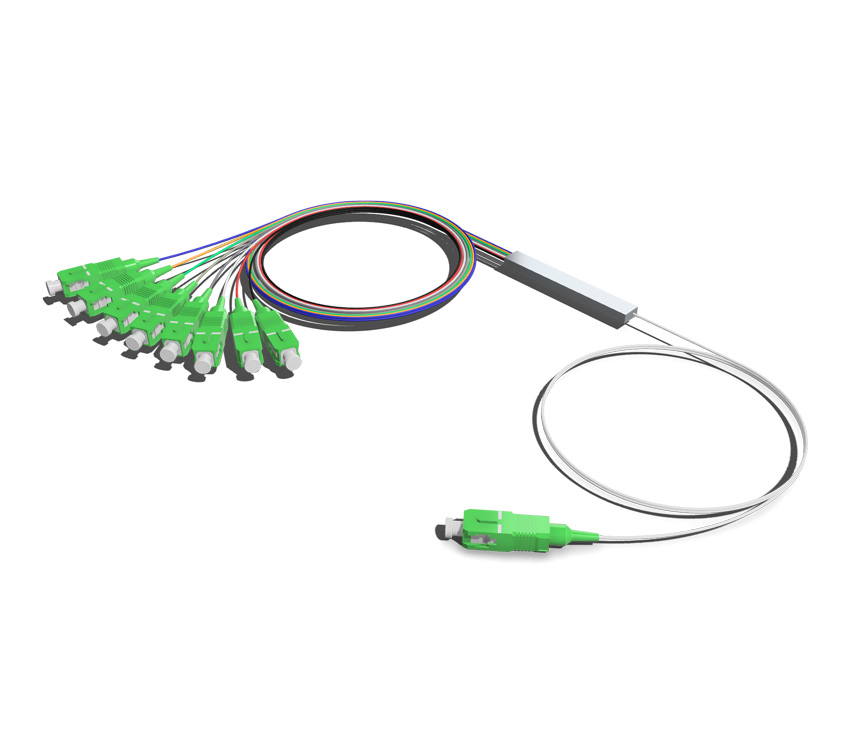

Blockless PLC Splitter

Type: Fully passive optical branching device (Blockless Planar Lightwave Circuits/PLC Optical Splitter)
Core Advantages: Low insertion loss & PDL, high channel uniformity, compact size, reliable and stable performance
Fiber Compatibility: Single Mode Fiber Type G657A
Configurations: Optional input & output
Compliance: Manufactured and tested to Telcordia-1209-core & GR-1221-core standards
Applications: FTTH/FTTC/FTTB, PON, CATV networks, data communications, fiber optic equipment/systems

Inquire Download

Product Description
Specification
Product Advantage

Product Description

1. Overview

Planar Lightwave Circuits (PLC) Optical Splitter is a fully passive optical branching device. It is designed to meet the stringent requirements of various optical network applications, featuring excellent performance in terms of insertion loss, polarization dependent loss (PDL), channel uniformity, and wavelength operability.

2. Applications

• FTTH (Fiber to the Home), FTTC (Fiber to the Curb), FTTB (Fiber to the Building)

• Passive Optical Networks (PON)

• CATV networks and data communications systems

• Fiber optic equipment and related systems integration

3. Key Features

• High channel uniformity

• Low insertion loss

• Compact and small size

• High reliability and stability

• Flexible input and output configurations (optional)

• Compatible with Single Mode Fiber Type G657A

Specification

4. Performance Standards

Manufactured and tested in compliance with Telcordia-1209-core and GR-1221-core standards to ensure consistent high performance.

5. Operating Parameters

• Wide wavelength operative range (specific values to be confirmed based on actual application requirements)

• Low polarization dependent loss (PDL)

6. Installation Notes

Refer to the dedicated Installation Manual for proper mounting, connection, and handling procedures to ensure optimal performance and durability.

7. Assembly Requirements

Assembly shall be performed in accordance with industry-standard practices for passive optical components, ensuring precise alignment and secure connections to maintain the splitter's performance characteristics.

Product Advantage

1

Exceptional channel uniformity for consistent signal distribution
2

Low insertion loss and polarization dependent loss (PDL)
3

Compact and small-size design for space-saving installation
4

High reliability and stable performance in long-term use
5

Flexible optional input and output configurations
6

Compatibility with Single Mode Fiber Type G657A for wide application adaptability
